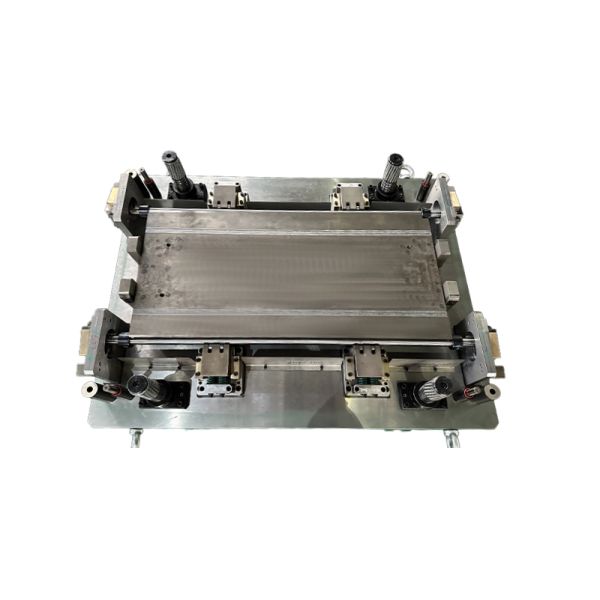

SGCC Metal Stamping Die Sheet Metal Die 2T Mould For Refrigerator Door Panel

Brand Name : IDO

Model Number : Refrigerator door panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator door panel

Part Material : SGCC

Mould Type : Stage mold

Mould Size : 1500*1100*550mm

Mould Weight : 2T

Punch Tonnage : 200T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

Metal Stamping Die SGCC Sheet Metal Stage Die For Refrigerator Door Panel With Compatibility

Description:

Our High-Performance Stage Die is engineered for precision and efficiency in refrigerator door panel stamping. Designed to deliver consistent, high-quality results, it streamlines your production process while reducing material waste. With robust construction and smooth operation, this die ensures repeatable accuracy across every panel. Ideal for modern manufacturing environments, it combines speed, reliability, and precision to help you achieve superior output with minimal downtime.

Quick Detail:

Cycle time ranges from 6–14s based on product.
Quick repair completes in 30 minutes; fast tool change within 15 minutes.
Punch edges require sharpening every 300,000–500,000 shots.
Software controls die motion.
Cabinet production needs only one press table and tools, reducing cost.
Sub-dies alone are removed for service.
One tool set can handle several models, with program-controlled changeovers.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

SGCC Metal Stamping Die Sheet Metal Die 2T Mould For Refrigerator Door Panel
